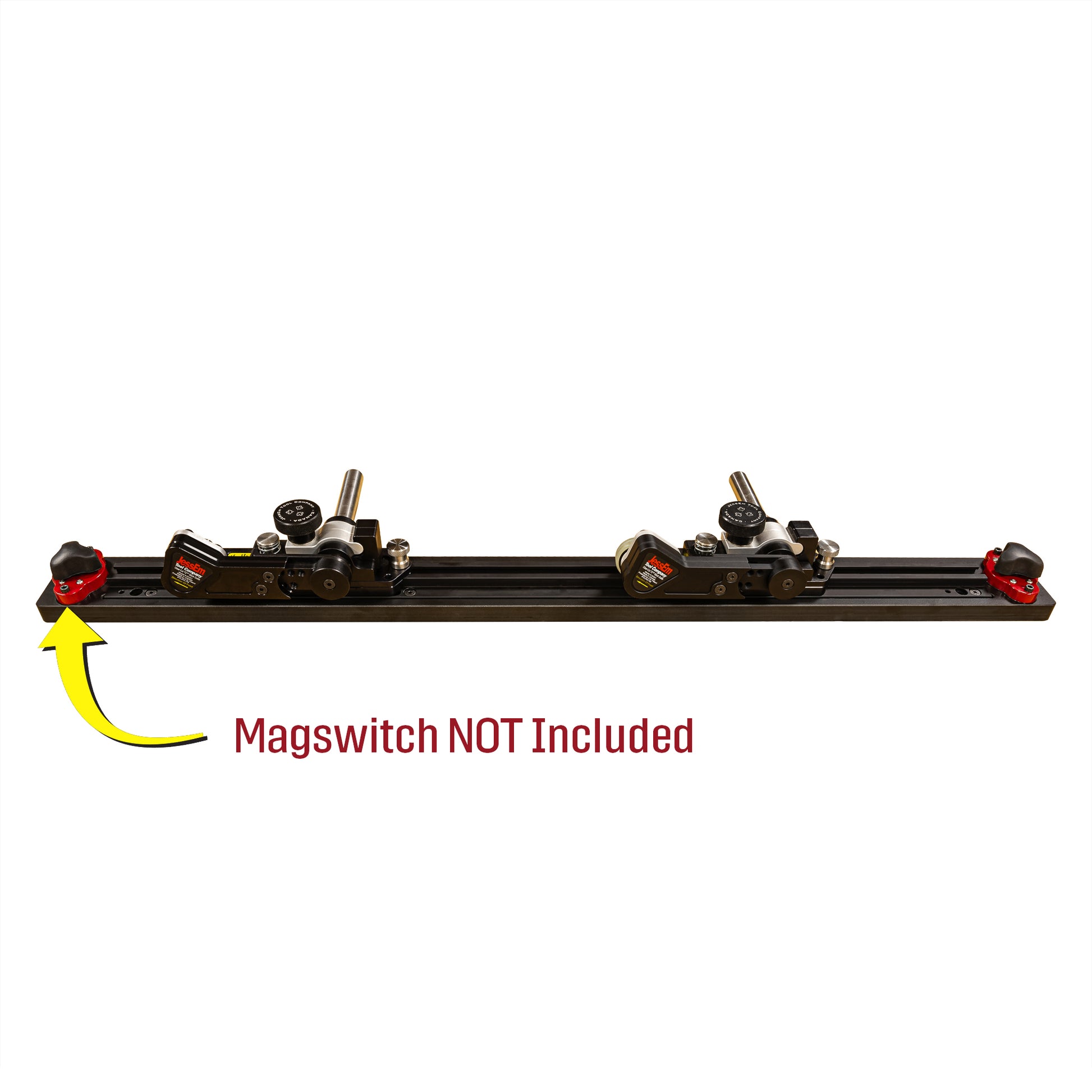

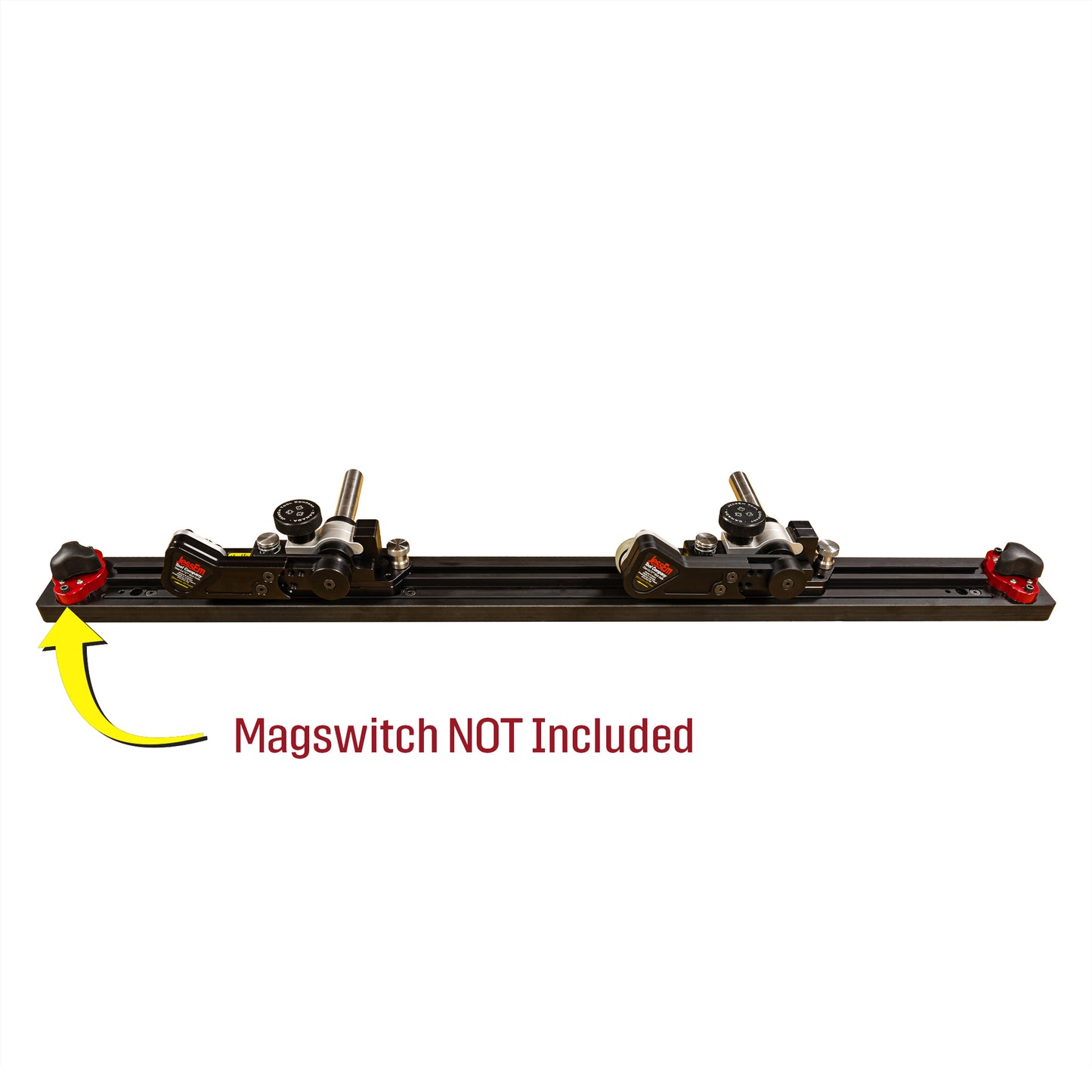

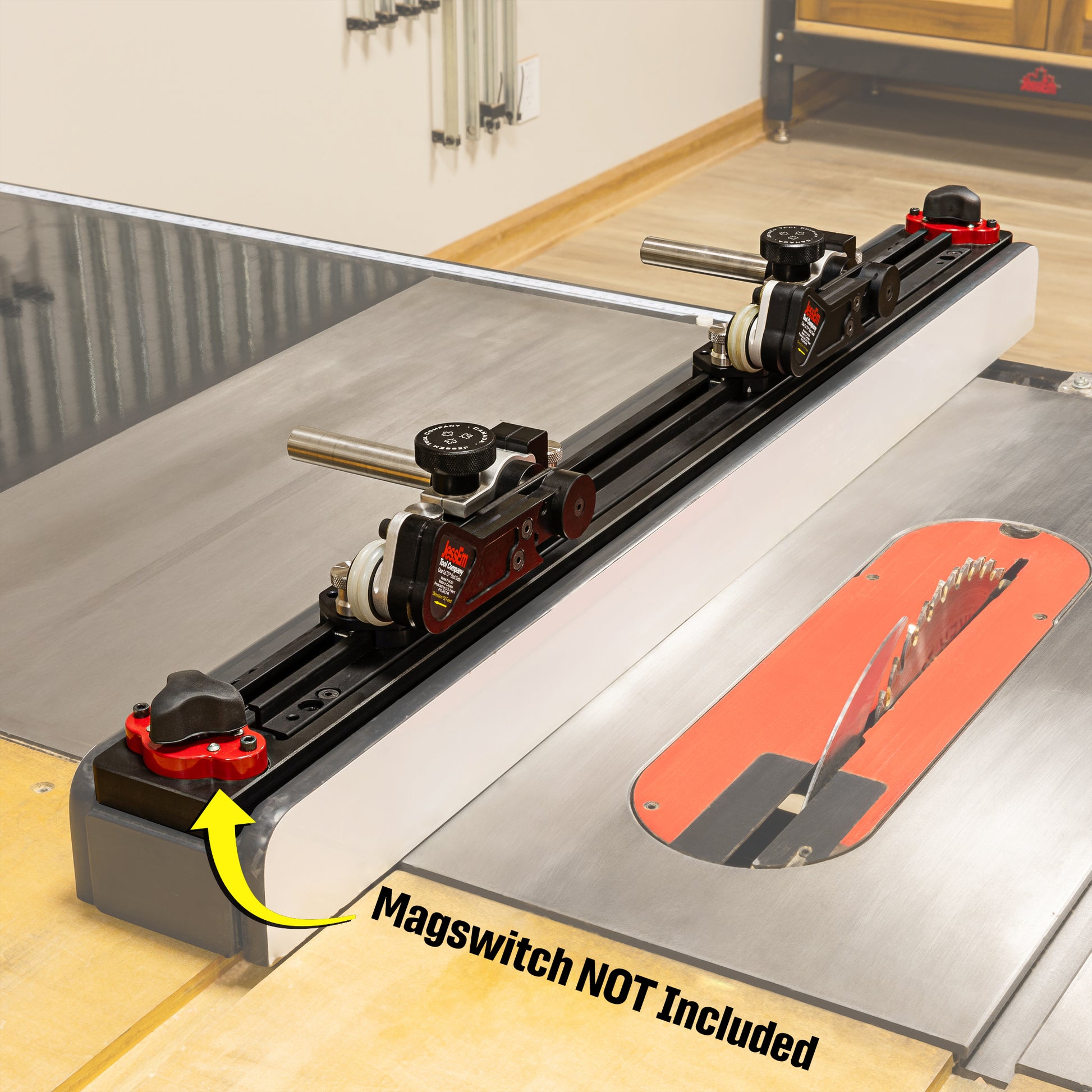

Clear-Cut TS Stock Guides

Model # 04301

The Clear-Cut TS Stock Guides for your table saw offer superior control of your work achieving safer, smoother and more precise cuts with your work held securely in position.

  • Unique guide rollers mounted on a 5° angle effectively steering  your stock towards your fence.  This angle causes the roller to hold with more force if the wood tries to move against the direction of the feed.
  • Under spring pressure, the Roller arms ensure your work is held firmly in place.
  • Rollers are fitted with one way roller bearings to ensure each roller spins in the direction of the feed to prevent kickback.
  • Grip force urethane rollers hold your stock securely in position
  • Set up is fast and easy
  • Guides lock into position along the track with a twist of the anodized aluminum clamping knobs.
  • Set up is fast and easy.
  • When not in use they tuck away in behind the surface of your fence.
  • The guides have 3-1/8" of total vertical travel and can accommodate a maximum stock thickness of 13/16" above the mounting surface when mounted to the t-track.
  • Have complete control of your stock even when routing wide boards or large panels.  The dual action of the guides will pull your work tight to the fence.
  • Guides are CNC machined from 6000 series aluminum and anodized for appearance and durability.
  • Roller axels machined from cold rolled steel and case hardened for durabilty
  • Rollers designed from wear resistant acetal resin
  • Traction tires are molded out of urethane for long life and superior grip.
  • Will not fit on most portable table saw units
  • Accessory kit available for Incra Table Saw Fences See Model #04310
  • Accessory kit available for Delta Unisaw Table Saw Fence See Model #04311

WARNING - Cancer and Reproductive harm. For more information please click: JessEm Prop65 Warnings or www.P65Warnings.ca.gov

    • 2 - Stock Guides Assemblies
    • 1 - 30" Track
    • 8 - #10 Self Tapping Screws
    • 4 - 1/4-20 x 1/2" Low Head Cap Screws
    • 4 - 1/4-20 Square Nuts
    • 1 - T-25 Torx Screwdriver
    • 1 - 1/8" Hex Key
    • 1 - #19 Drill Bit

** In order for JessEm's Clear Cut TS Stock Guides to work on a portable table saw unit, the fence must be atleast 2 inches wide. Please see track layout on page 5 of the manual **
